Category >> คีมตัดลม NILE ยาว124 มม. Power 0.4~0.5MPa
รหัส : 002-71-MR10รุ่น : MR10

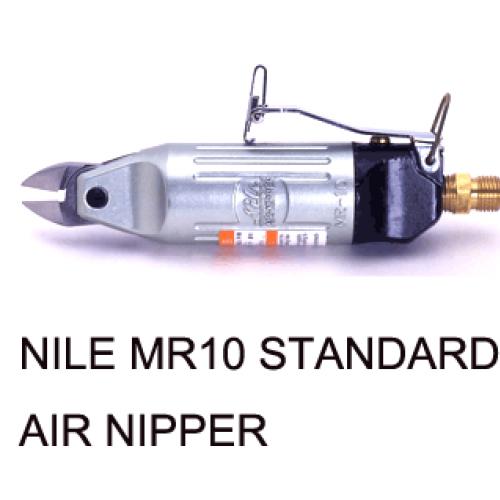

Model No. MR10, SMALL AND LIGHT TYPE,
AIR NIPPER HAND-HELD.
Here is a wide range of "NILE" air cutters to help you achieve higher productivity and remarkable cost saving in cutting, squeezing, pressing, bending and punching jobs for modern industries.
Equipped with different types of replaceable cutting blades, these air cutters can be versatile for various applications.
＊FEATURES：
．MR10：A standard type that is able to cut through an iron wire with diameter of approximately 1mm.
＊SPECIFICATIONS：
＊REMARK：
．Refer to the section of Standard Blades for the shapes of standard blades.
＊BLADE NUMBER：
＊APPLICATION OF BLADES（for cutting materials）：
．S－type Blades for copper.
．P－type Blades for steel.
．Z－type Blades for piano wire.
．F－type Blades for plastics.
．FD－type Blades for plastics.
．A－type Blades for crimping of non insulated.
．AR－type Blades for crimping of insulated.
AIR NIPPER HAND-HELD.
Here is a wide range of "NILE" air cutters to help you achieve higher productivity and remarkable cost saving in cutting, squeezing, pressing, bending and punching jobs for modern industries.
Equipped with different types of replaceable cutting blades, these air cutters can be versatile for various applications.
＊FEATURES：
．MR10：A standard type that is able to cut through an iron wire with diameter of approximately 1mm.
＊SPECIFICATIONS：
| Model No. | Overall length(mm) | Weight(g) | Grip Size Diameter (mm) | Air Consumption(cm3／stroke) | Power (approx.)(N) | Air pressure(MPa) |
| MR10 | 124 | 200 | 36 | 116 | 580 | 0.4～0.5 |
＊REMARK：
．Refer to the section of Standard Blades for the shapes of standard blades.
＊BLADE NUMBER：
| Model No. | Blade No. ＊Carbide tipped | Cutting capacity ( Diameter＝mm ) | |||||
| Steel wire | Copper wire | Piano wire | Crimping | Plastics(Soft) | Plastics(Hard) | ||
| MR10 | S4, S4S, EP4, CR4 | 1.0 | 1.6 | － | － | － | － |
| ＊Z4, ZCR4 | 1.0 | 1.6 | 0.5 | － | － | － | |
| F3, FD3, | － | － | － | － | 4.0 | 2.6 | |
＊APPLICATION OF BLADES（for cutting materials）：
．S－type Blades for copper.
．P－type Blades for steel.
．Z－type Blades for piano wire.
．F－type Blades for plastics.
．FD－type Blades for plastics.
．A－type Blades for crimping of non insulated.
．AR－type Blades for crimping of insulated.
