For Food Processing, Medical Devices, Laundry Machines and other Steam Equipments/Devices

Features

• Ensure large flow(heat) necessary for starting up machines.
• The stainless steel/bronze body and stainless steel disc & seat ensure supply of clean steam.
• Precise adjustment of secondary pressure with manual handle with automatic lock mechanism.
• Stainless steel bellows and embedded strainer (80mesh) allow high durability.
• Specifications

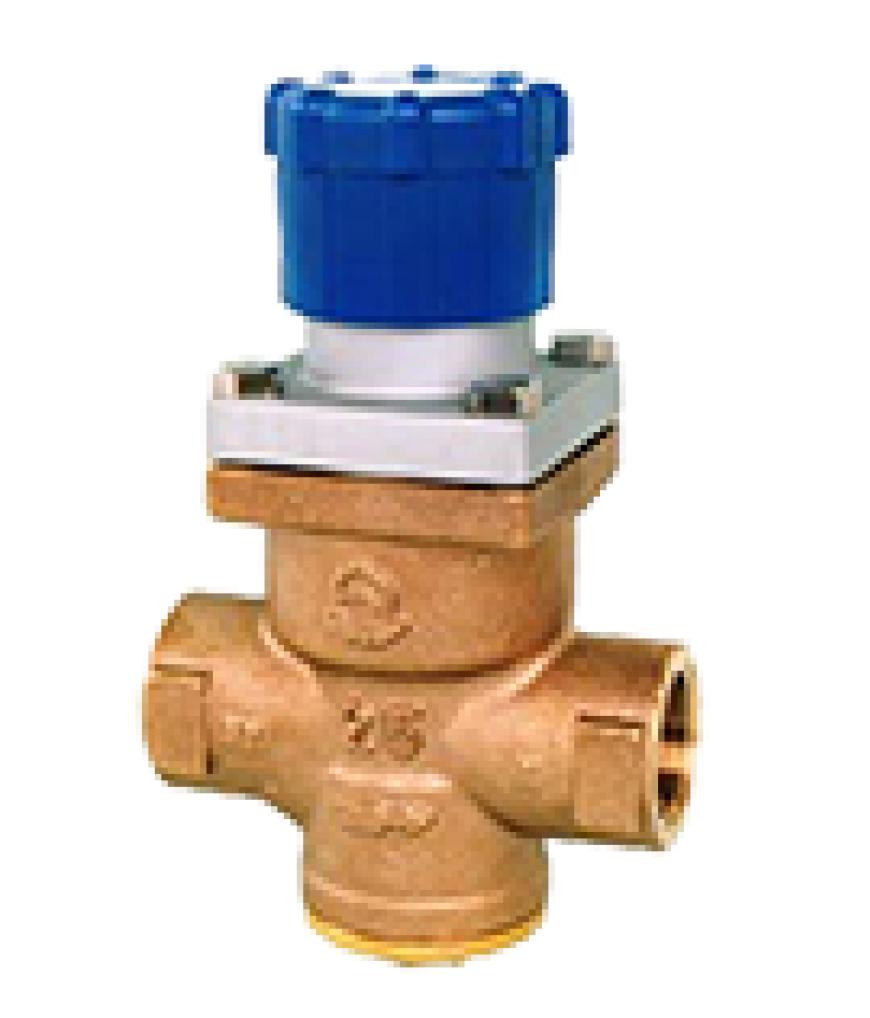

• Body material		Cast bronxze, Screwed	Stainless steel, Screwed	Stainless steel, Flanged
  Model Name		RD-40 L/M/H	RD-41 L/M/H	RD-41F L/M/H
  Code Name		RD40-J □	RD41-D □	RD41F-J □
  		※ L(low press) or H (high press.) for adjustable secondary pressure is required in □
  Applicable Fluid		Steam
  Applicable primary pressure		Max. 1.0 MPa*
  Adjustable secondary pressure		L:0.02~0.25MPa (Green) L:0.02~0.4MPa (Blue) L:0.35~0.8MPa (Red)
  Maximum reducing rate		20:1
  Maximum presssure differential across the disc		0.02MPa
  Lock up pressure		Max 0.02MPa
  Offset Pressure at rated flow		Within set pressure 0.5(Adjustable secondry pressure:Max. 0.13MPa) Within 0.07MPa(Adjustable secondry pressure:Max. 0.13MPa-0.4MPa) Within 0.12MPa(Adjustable secondry pressure:Max. 0.4MPa-0.8MPa)
  Leakage allowance		Less than 0.05% of rated flow
  Applicable Temperature		Max. 220°C
  End connection		Screwed JIS Rc		Flanged JIS 10KRF
  Materials		Hydraulic 1.075MPa
  Materials	Body	Cast bronze	Stainless Steel	Stainless Steel
  	Trim	Disc & seat (Stainless steel), Below( stainless Steel)
  Valve body pressure test		Hydraulic 1.5MPa.
