Category >> FUJI LOCKING LEVER SAND RAMMERS FR-18B-2F
รหัส : FR-18B-2Fรุ่น : FR-18B-2F

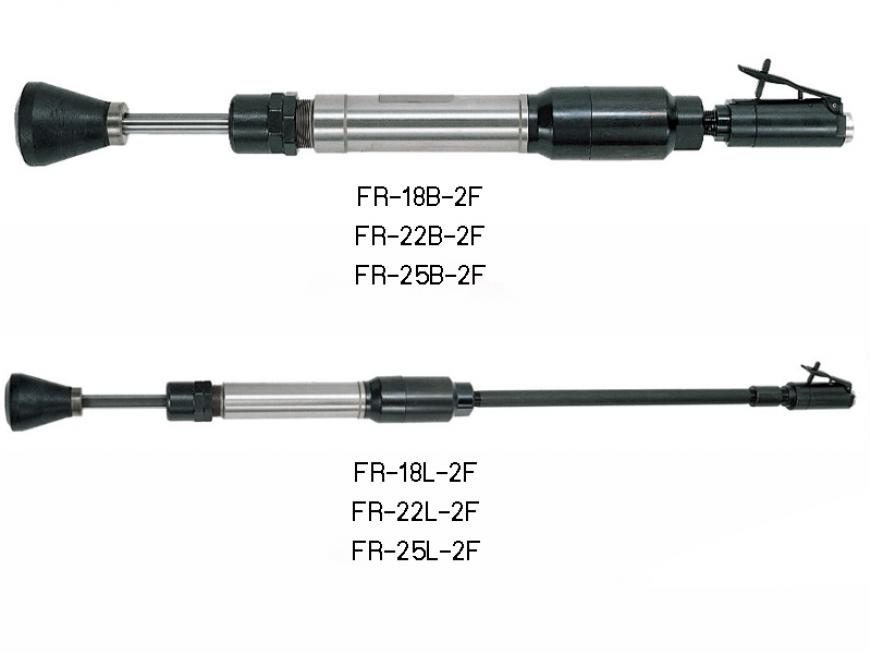

FUJI LOCKING LEVER SAND RAMMERS FR-18B-2F
| Model | FR-18B-2F |
| Blows (Hz) | 30 |
| Piston Diameter (mm/in) | 18.0, 45/64" |
| Stroke (mm/in) | 50, 1 31/32" |
| Butt Diameter (mm/in) | 41, 1 5/8" |
| Overall Length (mm/in) | 280 (383), 11 1/32" (15 5/64") |
| Weight (kg/lb) | 1.5, 3.3 |
| Air Consumption At Load (m3/min, ft3/min) | 0.40, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI LOCKING LEVER SAND RAMMERS FR-22B-2F
| Model | FR-22B-2F |
| Blows (Hz) | 17 |
| Piston Diameter (mm/in) | 22.0, 55/64" |
| Stroke (mm/in) | 64, 2 33/64" |
| Butt Diameter (mm/in) | 51, 2 1/32" |
| Overall Length (mm/in) | 350 (451), 13 25/32" (17 3/4") |
| Weight (kg/lb) | 3.0, 6.6 |
| Air Consumption At Load (m3/min, ft3/min) | 0.50, 17.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI LOCKING LEVER SAND RAMMERS FR-25B-2F
| Model | FR-25B-2F |
| Blows (Hz) | 13 |
| Piston Diameter (mm/in) | 25.4, 1" |
| Stroke (mm/in) | 83, 3 17/64" |
| Butt Diameter (mm/in) | 67, 2 41/64" |
| Overall Length (mm/in) | 506 (597), 19 59/64" (23 1/2") |
| Weight (kg/lb) | 5.5, 12.1 |
| Air Consumption At Load (m3/min, ft3/min) | 0.70, 24.7 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
FUJI LOCKING LEVER SAND RAMMERS FR-18L-2F
| Model | FR-18L-2F |
| Blows (Hz) | 30 |
| Piston Diameter (mm/in) | 18.0, 45/64" |
| Stroke (mm/in) | 50, 1 31/32" |
| Butt Diameter (mm/in) | 41, 1 5/8" |
| Overall Length (mm/in) | 558 (523), 21 31/32" (20 19/32") |
| Weight (kg/lb) | 2.0, 4.4 |
| Air Consumption At Load (m3/min, ft3/min) | 0.40, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI LOCKING LEVER SAND RAMMERS FR-22L-2F
| Model | FR-22L-2F |
| Blows (Hz) | 17 |
| Piston Diameter (mm/in) | 22.0, 55/64" |
| Stroke (mm/in) | 64, 2 33/64" |
| Butt Diameter (mm/in) | 51, 2 1/32" |
| Overall Length (mm/in) | 633 (600), 24 59/64" (23 5/8") |
| Weight (kg/lb) | 3.3, 7.2 |
| Air Consumption At Load (m3/min, ft3/min) | 0.50, 17.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI LOCKING LEVER SAND RAMMERS FR-25L-2F
| Model | FR-25L-2F |
| Blows (Hz) | 13 |
| Piston Diameter (mm/in) | 25.4, 1" |
| Stroke (mm/in) | 83, 3 17/64" |
| Butt Diameter (mm/in) | 67, 2 41/64" |
| Overall Length (mm/in) | 1,043 (1,005), 41 1/16" (39 9/16") |
| Weight (kg/lb) | 6.0, 13.2 |
| Air Consumption At Load (m3/min, ft3/min) | 0.70, 24.7 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
FUJI LOCKING LEVER SAND RAMMERS FR-32-2F
| Model | FR-32-2F |
| Blows (Hz) | 12 |
| Piston Diameter (mm/in) | 32.0, 1 17/64" |
| Stroke (mm/in) | 127, 5" |
| Butt Diameter (mm/in) | 75, 2 61/64" |
| Overall Length (mm/in) | 1,066 (1,090), 42 3/4" (42 29/32") |
| Weight (kg/lb) | 10.0, 22.0 |
| Air Consumption At Load (m3/min, ft3/min) | 0.80, 28.2 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
» Air Inlet Thread - FR-18B-2F, FR-18L-2F, FR-22L-2F: PT or NPT 1/4"; All Other Models: PT or NPT 3/8".
