Category >> FUJI LOCKING LEVER NEEDLE SCALERS FNS-2-1F
รหัส : FNS-2-1Fรุ่น : FNS-2-1F

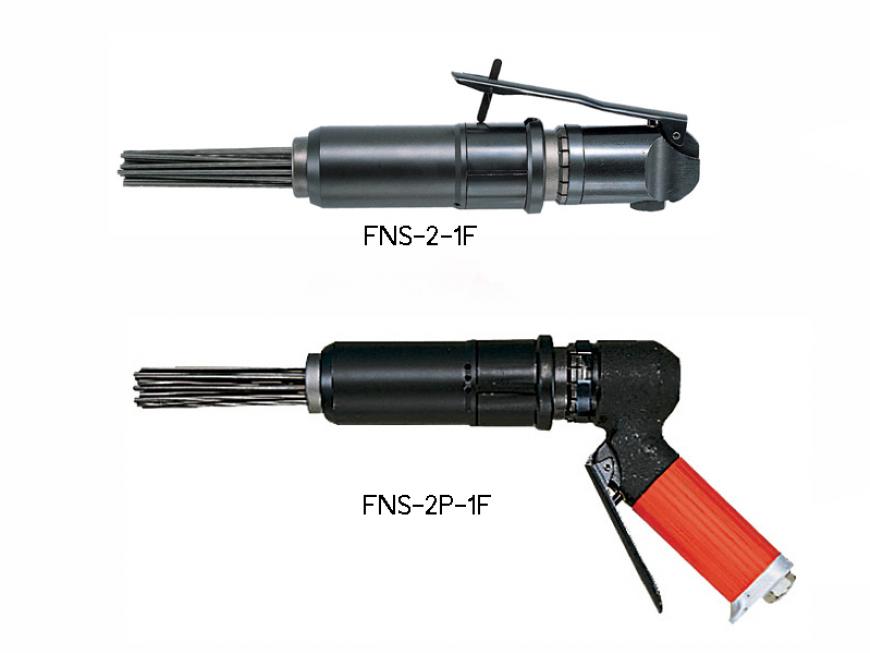

FUJI LOCKING LEVER NEEDLE SCALERS FNS-2-1F
| Model | FNS-2-1F |
| Throttle Type | Straight |
| Blows (Hz) | 133 |
| Piston Diameter (mm/in) | 25, 1" |
| Needle Roller (mm/in) | 180, 7 3/32" |
| N° and Diameter of Needle (3 mm/2 mm) | 19, 37 |
| Needle Stroke (mm/in) | 7, 9/32" |
| Overall Length (mm/in) | 325, 12 51/64" |
| Weight (kg/lb) | 1.9, 4.1 |
| Air Consumption At Load (m3/min, ft3/min) | 0.18, 6.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI LOCKING LEVER NEEDLE SCALERS FNS-2P-1F
| Model | FNS-2P-1F |
| Throttle Type | Pistol |
| Blows (Hz) | 133 |
| Piston Diameter (mm/in) | 25, 1" |
| Needle Roller (mm/in) | 180, 7 3/32" |
| N° and Diameter of Needle (3 mm/2 mm) | 19, 37 |
| Needle Stroke (mm/in) | 7, 9/32" |
| Overall Length (mm/in) | 371, 14 39/64" |
| Weight (kg/lb) | 2.5, 5.5 |
| Air Consumption At Load (m3/min, ft3/min) | 0.18, 6.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
» Specify needle diameter (3 mm or 2 mm) when ordering.
» Specify needle diameter (3 mm or 2 mm) when ordering.
