Category >> FUJI CHIPPING & CALKING HAMMERS FC-01SA-H
รหัส : FC-01SA-Hรุ่น : FC-01SA-H

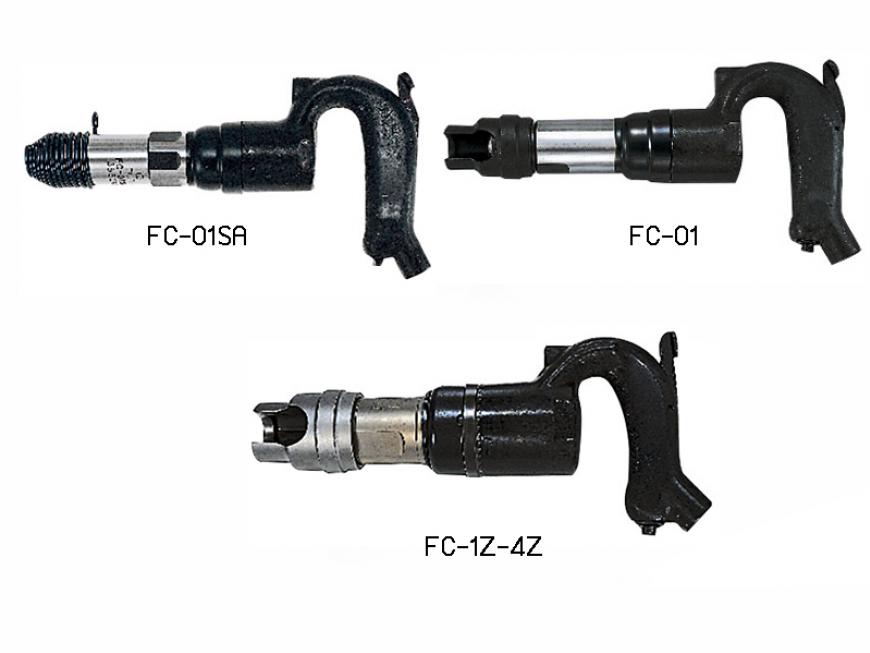

FUJI CHIPPING & CALKING HAMMERS FC-01SA-H
| Model | FC-01SA-H |
| Blows (Hz) | 50 |
| Piston Diameter (mm/in) | 20.0, 25/32" |
| Stroke (mm/in) | 44.5, 1 3/4" |
| Chisel Insert (mm) | 12 x 45 |
| Overall Length (mm/in) | 273, 10 3/4" |
| Weight (kg/lb) | 2.5, 5.5 |
| Air Consumption At Load (m3/min, ft3/min) | 0.42, 14.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI CHIPPING & CALKING HAMMERS FC-01SA-R
| Model | FC-01SA-R |
| Blows (Hz) | 50 |
| Piston Diameter (mm/in) | 20.0, 25/32" |
| Stroke (mm/in) | 44.5, 1 3/4" |
| Chisel Insert (mm) | 12 x 45 |
| Overall Length (mm/in) | 273, 10 3/4" |
| Weight (kg/lb) | 2.5, 5.5 |
| Air Consumption At Load (m3/min, ft3/min) | 0.42, 14.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI CHIPPING & CALKING HAMMERS FC-01-3
| Model | FC-01-3 |
| Blows (Hz) | 50 |
| Piston Diameter (mm/in) | 20.0, 25/32" |
| Stroke (mm/in) | 44.5, 1 3/4" |
| Chisel Insert (mm) | 12 x 45 |
| Overall Length (mm/in) | 273, 10 3/4" |
| Weight (kg/lb) | 2.6, 5.7 |
| Air Consumption At Load (m3/min, ft3/min) | 0.42, 14.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI CHIPPING & CALKING HAMMERS FC-01-4
| Model | FC-01-4 |
| Blows (Hz) | 50 |
| Piston Diameter (mm/in) | 20.0, 25/32" |
| Stroke (mm/in) | 44.5, 1 3/4" |
| Chisel Insert (mm) | 14 x 45 |
| Overall Length (mm/in) | 273, 10 3/4" |
| Weight (kg/lb) | 2.6, 5.7 |
| Air Consumption At Load (m3/min, ft3/min) | 0.42, 14.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI CHIPPING & CALKING HAMMERS FC-1Z-1
| Model | FC-1Z-1 |
| Blows (Hz) | 50 |
| Piston Diameter (mm/in) | 28.5, 1 1/8" |
| Stroke (mm/in) | 25.0, 1" |
| Chisel Insert (mm) | 14.8 x 60 |
| Overall Length (mm/in) | 301, 11 27/32" |
| Weight (kg/lb) | 5.0, 11 |
| Air Consumption At Load (m3/min, ft3/min) | 0.60, 21.2 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
FUJI CHIPPING & CALKING HAMMERS FC-1Z-2
| Model | FC-1Z-2 |
| Blows (Hz) | 50 |
| Piston Diameter (mm/in) | 28.5, 1 1/8" |
| Stroke (mm/in) | 25.0, 1" |
| Chisel Insert (mm) | 17.5 x 60 |
| Overall Length (mm/in) | 301, 11 27/32" |
| Weight (kg/lb) | 5.0, 11 |
| Air Consumption At Load (m3/min, ft3/min) | 0.60, 21.2 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
FUJI CHIPPING & CALKING HAMMERS FC-2Z-1
| Model | FC-2Z-1 |
| Blows (Hz) | 42 |
| Piston Diameter (mm/in) | 28.5, 1 1/8" |
| Stroke (mm/in) | 51.0, 2" |
| Chisel Insert (mm) | 14.8 x 60 |
| Overall Length (mm/in) | 342, 13 15/32" |
| Weight (kg/lb) | 5.7, 12.5 |
| Air Consumption At Load (m3/min, ft3/min) | 0.60, 21.2 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
FUJI CHIPPING & CALKING HAMMERS FC-2Z-2
| Model | FC-2Z-2 |
| Blows (Hz) | 42 |
| Piston Diameter (mm/in) | 28.5, 1 1/8" |
| Stroke (mm/in) | 51.0, 2" |
| Chisel Insert (mm) | 17.5 x 60 |
| Overall Length (mm/in) | 342, 13 15/32" |
| Weight (kg/lb) | 5.7, 12.5 |
| Air Consumption At Load (m3/min, ft3/min) | 0.60, 21.2 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
FUJI CHIPPING & CALKING HAMMERS FC-3Z-1
| Model | FC-3Z-1 |
| Blows (Hz) | 38 |
| Piston Diameter (mm/in) | 28.5, 1 1/8" |
| Stroke (mm/in) | 76.0, 3" |
| Chisel Insert (mm) | 14.8 x 60 |
| Overall Length (mm/in) | 386, 15 13/64" |
| Weight (kg/lb) | 6.3, 13.8 |
| Air Consumption At Load (m3/min, ft3/min) | 0.65, 22.9 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
FUJI CHIPPING & CALKING HAMMERS FC-3Z-2
| Model | FC-3Z-2 |
| Blows (Hz) | 38 |
| Piston Diameter (mm/in) | 28.5, 1 1/8" |
| Stroke (mm/in) | 76.0, 3" |
| Chisel Insert (mm) | 17.5 x 60 |
| Overall Length (mm/in) | 386, 15 13/64" |
| Weight (kg/lb) | 6.3, 13.8 |
| Air Consumption At Load (m3/min, ft3/min) | 0.65, 22.9 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
FUJI CHIPPING & CALKING HAMMERS FC-4Z-1
| Model | FC-4Z-1 |
| Blows (Hz) | 28 |
| Piston Diameter (mm/in) | 28.5, 1 1/8" |
| Stroke (mm/in) | 102.0, 4" |
| Chisel Insert (mm) | 14.8 x 60 |
| Overall Length (mm/in) | 425, 15 13/64" |
| Weight (kg/lb) | 6.8, 14.9 |
| Air Consumption At Load (m3/min, ft3/min) | 0.65, 22.9 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
FUJI CHIPPING & CALKING HAMMERS FC-4Z-2
| Model | FC-4Z-2 |
| Blows (Hz) | 28 |
| Piston Diameter (mm/in) | 28.5, 1 1/8" |
| Stroke (mm/in) | 102.0, 4" |
| Chisel Insert (mm) | 17.5 x 60 |
| Overall Length (mm/in) | 425, 15 13/64" |
| Weight (kg/lb) | 6.8, 14.9 |
| Air Consumption At Load (m3/min, ft3/min) | 0.65, 22.9 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
» Air Inlet Thread Size - FC-01 Series: PT or NPT 1/4"; All Other Models: PT or NPT 3/8".
