Category >> FUJI LOCKING LEVER FLUX CHIPPERS FCH-20-1F
รหัส : FCH-20-1Fรุ่น : FCH-20-1F
FUJI LOCKING LEVER FLUX CHIPPERS FCH-20-1F
| Model | FCH-20-1F |
| Blows (Hz) | 90 |
| Piston Diameter (mm/in) | 20, 25/32" |
| Stroke (mm/in) | 16, 5/8" |
| Overall Length (mm/in) | 176, 6 13/64" |
| Weight (kg/lb) | 0.8, 1.8 |
| Air Consumption At Load (m3/min, ft3/min) | 0.14, 4.9 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
FUJI LOCKING LEVER FLUX CHIPPERS FCH-20F-1F
| Model | FCH-20F-1F |
| Blows (Hz) | 90 |
| Piston Diameter (mm/in) | 20, 25/32" |
| Stroke (mm/in) | 16, 5/8" |
| Overall Length (mm/in) | 182, 7 5/32" |
| Weight (kg/lb) | 1.0, 2.2 |
| Air Consumption At Load (m3/min, ft3/min) | 0.14, 4.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |

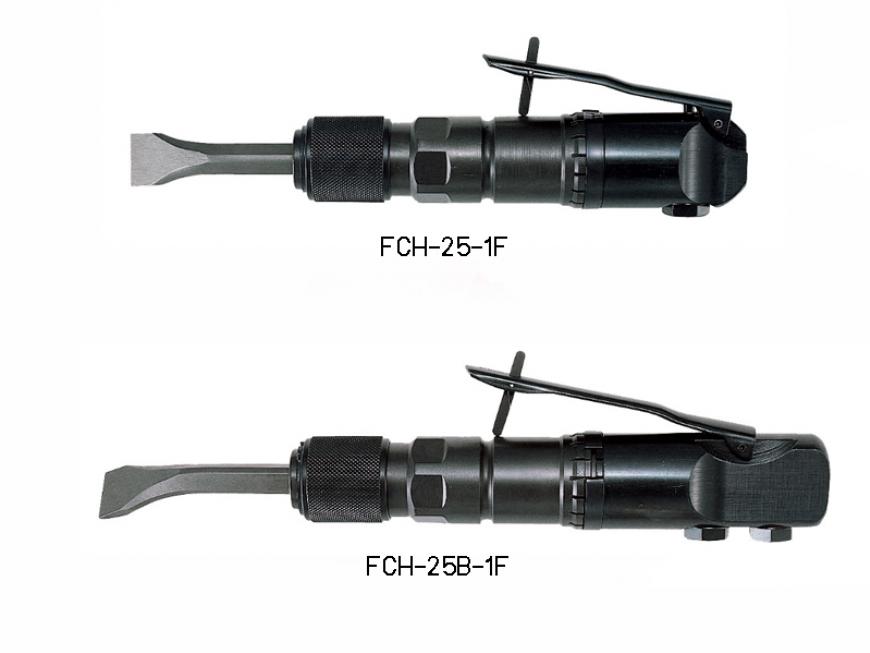

FUJI LOCKING LEVER FLUX CHIPPERS FCH-25-1F
| Model | FCH-25-1F |
| Blows (Hz) | 60 |
| Piston Diameter (mm/in) | 25, 1" |
| Stroke (mm/in) | 20, 25/32" |
| Overall Length (mm/in) | 204, 8 1/32" |
| Weight (kg/lb) | 1.5, 3.3 |
| Air Consumption At Load (m3/min, ft3/min) | 0.18, 6.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI LOCKING LEVER FLUX CHIPPERS FCH-25B-1F
| Model | FCH-25B-1F |
| Blows (Hz) | 60 |
| Piston Diameter (mm/in) | 25, 1" |
| Stroke (mm/in) | 20, 25/32" |
| Overall Length (mm/in) | 239, 9 13/32" |
| Weight (kg/lb) | 1.7, 3.7 |
| Air Consumption At Load (m3/min, ft3/min) | 0.18, 6.4 |
| Air Hose Size (mm/in) | 8.0, 5/16" |
» Air Inlet Thread Size - PT or NPT 1/4".
