Category >> FUJI LOCKING LEVER CORNER DRILLS FCD-10X-1F
รหัส : FCD-10X-1Fรุ่น : FCD-10X-1F

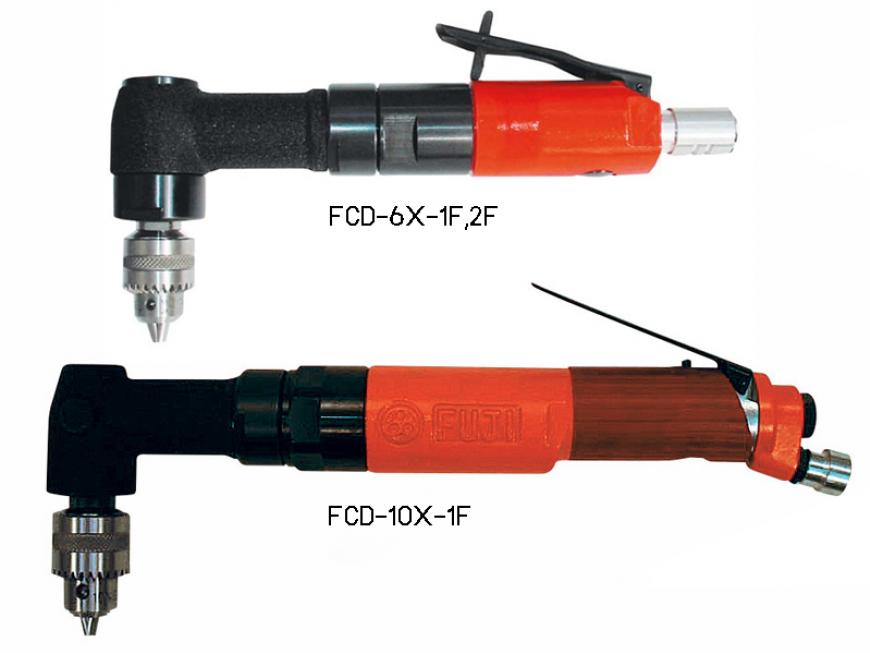

FUJI LOCKING LEVER CORNER DRILLS
| Model | FCD-6X-1F |
| Drilling Capacity Guidance (mm/ in) | 6, 1/4" |
| Stall Torque (N.m/kgf.m/ft.lb) | 4.9, 0.50, 3.6 |
| Free Speed (min-1) | 2,500 |
| Spindle Thread Size (in) | 3/8-24UNF |
| Chuck Capacity (mm) | 6.5 |
| Side to Center (mm/ in) | 21, 53/64" |
| Power (W/ hp) | 340, 0.46 |
| Overall Length (mm/in) | 267, 10 33/64" |
| Weight (kg/lb) | 1.7, 3.7 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.68, 24.0 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FCD-6X-2F |
| Drilling Capacity Guidance (mm/ in) | 8, 5/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 7.8, 0.80, 5.7 |
| Free Speed (min-1) | 1,500 |
| Spindle Thread Size (in) | 3/8-24UNF |
| Chuck Capacity (mm) | 8 |
| Side to Center (mm/ in) | 21, 53/64" |
| Power (W/ hp) | 290, 0.39 |
| Overall Length (mm/in) | 281, 11 1/16" |
| Weight (kg/lb) | 1.9, 4.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.68, 24.0 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FCD-10X-1F |
| Drilling Capacity Guidance (mm/ in) | - , 7/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 11.8, 1.20, 8.6 |
| Free Speed (min-1) | 1,200 |
| Spindle Thread Size (in) | 1/2-20UNF |
| Chuck Capacity (mm) | 10 |
| Side to Center (mm/ in) | 21, 53/64" |
| Power (W/ hp) | 420, 0.56 |
| Overall Length (mm/in) | 377, 14 27/32" |
| Weight (kg/lb) | 2.2, 4.8 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.50, 17.6 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size: 1/4".
» All models are Rear Exhaust Types.
» All models are Rear Exhaust Types.
