Category >> FUJI HEAVY-DUTY DRILLS FRD-75R-1
รหัส : FRD-75R-1รุ่น : FRD-75R-1

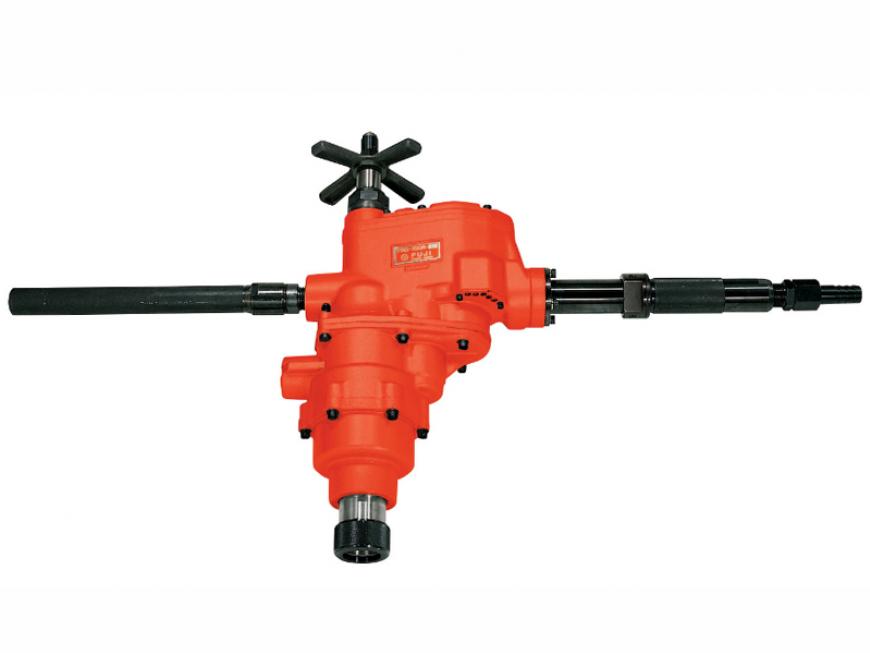

FUJI HEAVY-DUTY DRILLS
| Model (Normal Roll Handle) | FRD-65R-1 |
| Drilling Capacity (mm/ in) | 65, 2 9/16" |
| Reaming Tapping (mm/ in) | 65, 2 9/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 608.0, 62.0, 448.4 |
| Free Speed (min-1) | 190 |
| Socket (M.T.#) | 5 |
| Feed Length (mm/ in) | 125, 4 59/64" |
| Power (W/ hp) | 330, 4.43 |
| Overall Length (mm/in) | 487, 19 11/64" |
| Weight (kg/lb) | 32.0, 70.4 |
| Maximum Air Consumption (m3/min, ft3/min) | 5.50, 194.2 |
| Air Hose Size (mm/in) | 25.4, 1" |
| Model (Self-Return Type) | FRD-65R-1S |
| Drilling Capacity (mm/ in) | 65, 2 9/16" |
| Reaming Tapping (mm/ in) | 65, 2 9/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 608.0, 62.0, 448.4 |
| Free Speed (min-1) | 190 |
| Socket (M.T.#) | 5 |
| Feed Length (mm/ in) | 125, 4 59/64" |
| Power (W/ hp) | 330, 4.43 |
| Overall Length (mm/in) | 487, 19 11/64" |
| Weight (kg/lb) | 32.0, 70.4 |
| Maximum Air Consumption (m3/min, ft3/min) | 5.50, 194.2 |
| Air Hose Size (mm/in) | 25.4, 1" |
| Model (Self-Return Type) | FRD-65R-1S |
| Drilling Capacity (mm/ in) | 65, 2 9/16" |
| Reaming Tapping (mm/ in) | 65, 2 9/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 608.0, 62.0, 448.4 |
| Free Speed (min-1) | 190 |
| Socket (M.T.#) | 5 |
| Feed Length (mm/ in) | 125, 4 59/64" |
| Power (W/ hp) | 330, 4.43 |
| Overall Length (mm/in) | 487, 19 11/64" |
| Weight (kg/lb) | 32.0, 70.4 |
| Maximum Air Consumption (m3/min, ft3/min) | 5.50, 194.2 |
| Air Hose Size (mm/in) | 25.4, 1" |
| Model (Normal Roll Handle) | FRD-75R-1 |
| Drilling Capacity (mm/ in) | 75, 3" |
| Reaming Tapping (mm/ in) | 75, 3" |
| Stall Torque (N.m/kgf.m/ft.lb) | 1,156.0, 118.0, 855.0 |
| Free Speed (min-1) | 85 |
| Socket (M.T.#) | 5 |
| Feed Length (mm/ in) | 128, 5 3/64" |
| Power (W/ hp) | 310, 4.16 |
| Overall Length (mm/in) | 600, 23 5/8" |
| Weight (kg/lb) | 43.0, 94.6 |
| Maximum Air Consumption (m3/min, ft3/min) | 5.50, 194.2 |
| Air Hose Size (mm/in) | 25.4, 1" |
| Model (Self-Return Type) | FRD-75R-1S |
| Drilling Capacity (mm/ in) | 75, 3" |
| Reaming Tapping (mm/ in) | 75, 3" |
| Stall Torque (N.m/kgf.m/ft.lb) | 1,156.0, 118.0, 855.0 |
| Free Speed (min-1) | 85 |
| Socket (M.T.#) | 5 |
| Feed Length (mm/ in) | 128, 5 3/64" |
| Power (W/ hp) | 310, 4.16 |
| Overall Length (mm/in) | 600, 23 5/8" |
| Weight (kg/lb) | 43.0, 94.6 |
| Maximum Air Consumption (m3/min, ft3/min) | 5.50, 194.2 |
| Air Hose Size (mm/in) | 25.4, 1" |
| Model (Normal Roll Handle) | FRD-100R-1 |
| Drilling Capacity (mm/ in) | 100, 4" |
| Reaming Tapping (mm/ in) | 100, 4" |
| Stall Torque (N.m/kgf.m/ft.lb) | 1,823.0, 186.0, 1,344.8 |
| Free Speed (min-1) | 55 |
| Socket (M.T.#) | 5 |
| Feed Length (mm/ in) | 128, 5 3/64" |
| Power (W/ hp) | 310, 4.16 |
| Overall Length (mm/in) | 600, 23 5/8" |
| Weight (kg/lb) | 43.0, 94.6 |
| Maximum Air Consumption (m3/min, ft3/min) | 5.50, 194.2 |
| Air Hose Size (mm/in) | 25.4, 1" |
| Model (Self-Return Type) | FRD-100R-1S |
| Drilling Capacity (mm/ in) | 100, 4" |
| Reaming Tapping (mm/ in) | 100, 4" |
| Stall Torque (N.m/kgf.m/ft.lb) | 1,823.0, 186.0, 1,344.8 |
| Free Speed (min-1) | 55 |
| Socket (M.T.#) | 5 |
| Feed Length (mm/ in) | 128, 5 3/64" |
| Power (W/ hp) | 310, 4.16 |
| Overall Length (mm/in) | 600, 23 5/8" |
| Weight (kg/lb) | 43.0, 94.6 |
| Maximum Air Consumption (m3/min, ft3/min) | 5.50, 194.2 |
| Air Hose Size (mm/in) | 25.4, 1" |
» Air Inlet Thread Size - FRD-65R~100R: 1"
