Category >> FUJI STRAIGHT GRINDERS ROLL THROTTLE MODELS FG-3H-1
รหัส : FG-3H-1รุ่น : FG-3H-1

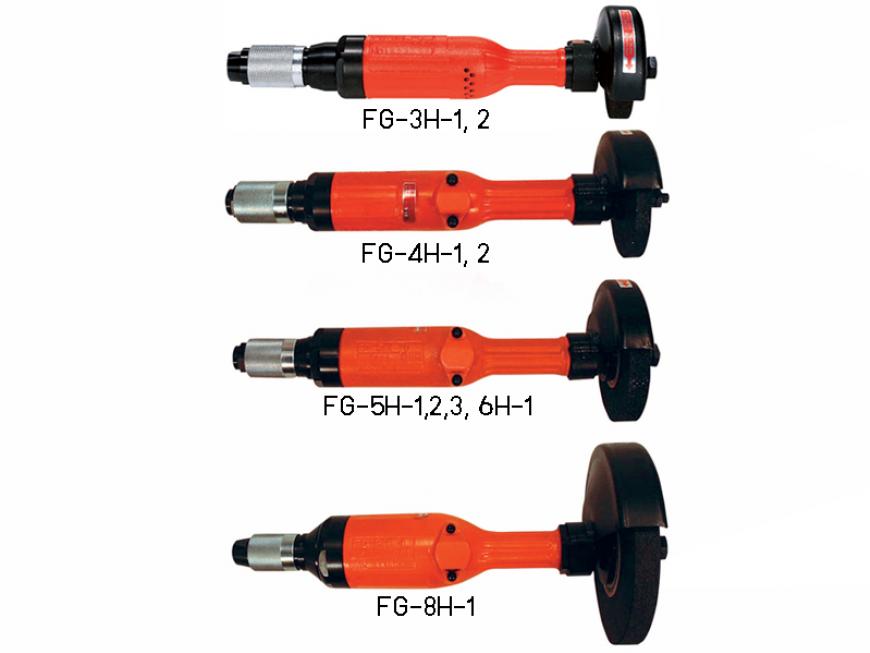

FUJI STRAIGHT GRINDERS ROLL THROTTLE MODELS
| Model | FG-3H-1 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 65 x 13 x 9.53, 2 1/2" x 1/2" x 3/8" |
| Free Speed (min-1) | 14,600 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 520, 0.7 |
| Overall Length (mm/in) | 317, 12 31/64" |
| Weight (kg/lb) | 1.5, 3.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.55, 19.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-3H-2 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 75 x 13 x 9.53, 3" x 1/2" x 3/8" |
| Free Speed (min-1) | 12,700 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 520, 0.7 |
| Overall Length (mm/in) | 317, 12 31/64" |
| Weight (kg/lb) | 1.5, 3.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.55, 19.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-4H-1 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 100 x 19 x 9.53, 4" x 3/4" x 3/8" |
| Free Speed (min-1) | 9,500 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 700, 0.9 |
| Overall Length (mm/in) | 385, 15 5/32" |
| Weight (kg/lb) | 2.2, 4.8 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.80, 28.2 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-4H-2 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 100 x 19 x 12.7, 4" x 3/4" x 1/2" |
| Free Speed (min-1) | 9,500 |
| Spindle Thread Size (in) | W1/2-12 |
| Power (W/ hp) | 700, 0.9 |
| Overall Length (mm/in) | 391, 15 25/64" |
| Weight (kg/lb) | 2.2, 4.8 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.80, 28.2 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-5H-1 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 125 x 19 x 12.7, 5" x 3/4" x 1/2" |
| Free Speed (min-1) | 7,600 |
| Spindle Thread Size (in) | W1/2-12 |
| Power (W/ hp) | 960, 1.3 |
| Overall Length (mm/in) | 405, 15 15/16" |
| Weight (kg/lb) | 2.7, 5.9 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.00, 35.3 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-5H-2 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 125 x 19 x 15.8, 5" x 3/4" x 5/8" |
| Free Speed (min-1) | 7,600 |
| Spindle Thread Size (in) | 5/8-11UNF |
| Power (W/ hp) | 960, 1.3 |
| Overall Length (mm/in) | 410, 16 9/64" |
| Weight (kg/lb) | 2.8, 6.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.00, 35.3 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-5H-3 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 150 x 25 x 15.8, 6" x 1" x 5/8" |
| Free Speed (min-1) | 6,300 |
| Spindle Thread Size (in) | 5/8-11UNF |
| Power (W/ hp) | 960, 1.3 |
| Overall Length (mm/in) | 421, 16 37/64" |
| Weight (kg/lb) | 2.8, 6.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.90, 31.8 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-6H-1 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 150 x 25 x 15.8, 6" x 1" x 5/8" |
| Free Speed (min-1) | 6,300 |
| Spindle Thread Size (in) | 5/8-11UNF |
| Power (W/ hp) | 1,000, 1.4 |
| Overall Length (mm/in) | 434, 17 3/32" |
| Weight (kg/lb) | 3.5, 7.7 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.20, 42.3 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-8H-1 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 205 x 25 x 15.8, 8" x 5/64" x 1" |
| Free Speed (min-1) | 4,600 |
| Spindle Thread Size (in) | 5/8-11UNF |
| Power (W/ hp) | 1,470, 2 |
| Overall Length (mm/in) | 472, 18 37/64" |
| Weight (kg/lb) | 5.4, 11.9 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.60, 56.5 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
» Air Inlet Thread Size - FG-8H-1: PT or NPT 1/2"; All Other Models: PT or NPT 3/8".
