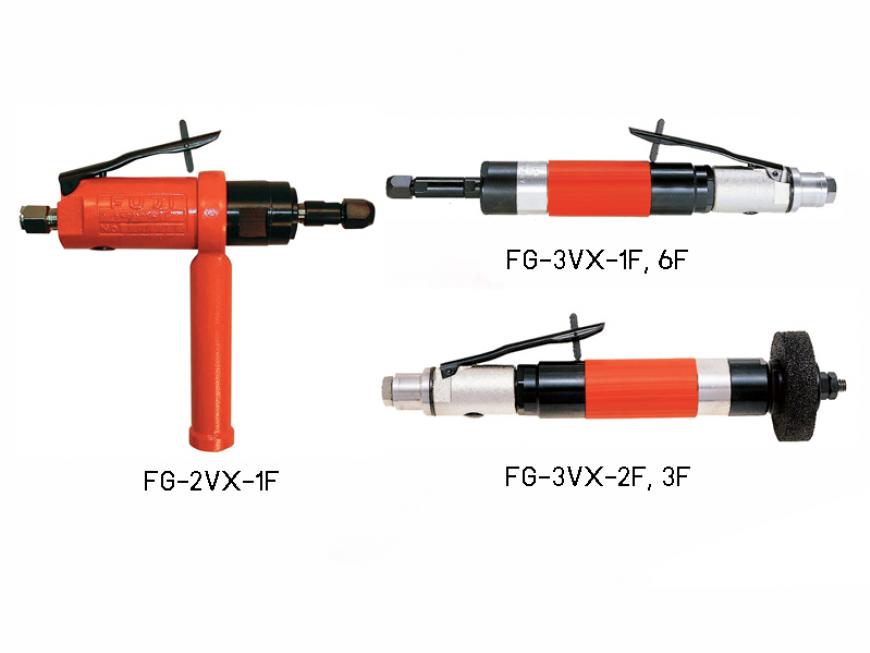

Category >> FUJI LOW-SPEED GRINDERS FG-2VX-1F
รหัส : FG-2VX-1Fรุ่น : FG-2VX-1F
FUJI LOW-SPEED GRINDERS
LOCKING LEVER HANDLE MODELS
Rear Exhaust Models
| Model | FG-2VX-1F |
| Collet Size (mm/in) | 6, 1/4" |
| Free Speed (min-1) | 4,300 |
| Spindle Thread Size (in) | 3/8-24UNF |
| Power (W/ hp) | 290, 0.39 |
| Overall Length (mm/in) | 216, 8 1/2" |
| Weight (kg/lb) | 0.9, 2.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.34, 12.0 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-3VX-1F |
| Collet Size (mm/in) | 6, 1/4" |
| Free Speed (min-1) | 7,600 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 280, 0.37 |
| Overall Length (mm/in) | 331, 13 1/32" |
| Weight (kg/lb) | 1.4, 3.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.45, 15.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-3VX-6F |
| Collet Size (mm/in) | 6, 1/4" |
| Free Speed (min-1) | 12,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 310, 0.41 |
| Overall Length (mm/in) | 331, 13 1/32" |
| Weight (kg/lb) | 1.4, 3.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.47, 16.6 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-3VX-2F |
| Collet Size (mm/in) | 75 x 19 x 9.5, 3" x 3/4" x 3/8" |
| Free Speed (min-1) | 9,500 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 290, 0.39 |
| Overall Length (mm/in) | 316, 12 7/16" |
| Weight (kg/lb) | •1.4, •3.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.47, 16.6 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-3VX-3F |
| Collet Size (mm/in) | 125 x 19 x 9.5, 5" x 3/4" x 3/8" |
| Free Speed (min-1) | 7,600 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 280, 0.37 |
| Overall Length (mm/in) | 316, 12 7/16" |
| Weight (kg/lb) | •1.4, •3.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.45, 15.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 3/8".
» Air Inlet Thread Size - PT or NPT 1/4".
» Model marked • are without Wheel Guard.
» Model marked • are without Wheel Guard.
