Category >> FUJI DIE GRINDERS FOR MOUNTED POINT FG-26H-1F
รหัส : FG-26H-1Fรุ่น : FG-26H-1F

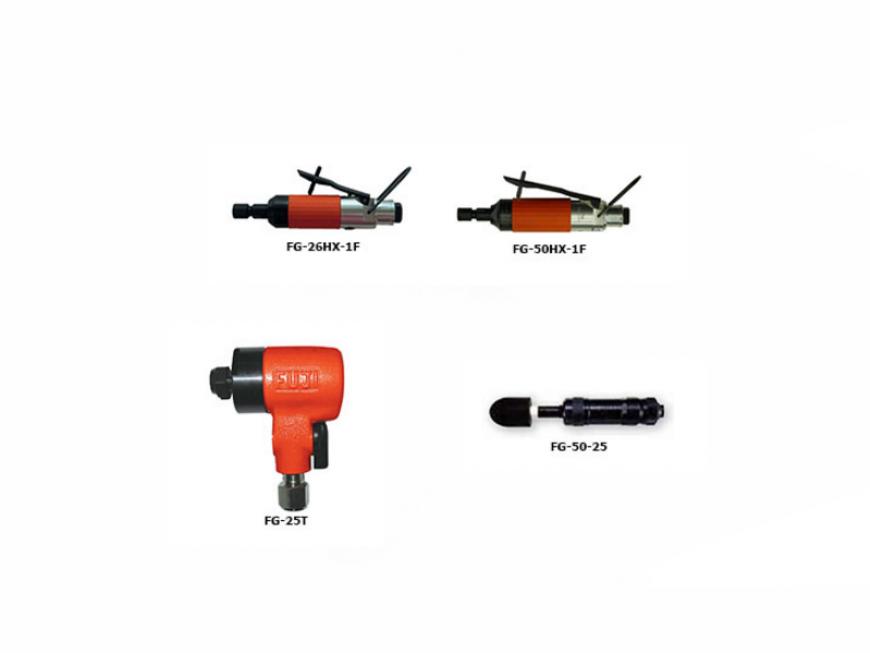

FUJI DIE GRINDERS FOR MOUNTED POINT
| Model Front/Side Exhaust Type | FG-26H-1F |
| Collet Size (mm/in) | 6, 1/4" |
| Maximum Diameter (Mounted Wheel) (mm/in) | 25, 1" |
| Maximum Diameter (Burr Head) (mm/in) | 13, 1/2" |
| Free Speed (min-1) | 24,000 |
| Power (W/ hp) | 250, 0.34 |
| Overall Length (mm/in) | 152, 5 63/64" |
| Weight (kg/lb) | 0.5, 1.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.5, 17.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Front/Side Exhaust Type | FG-50H-1F |
| Collet Size (mm/in) | 6, 1/4" |
| Maximum Diameter (Mounted Wheel) (mm/in) | 32, 1 1/4" |
| Maximum Diameter (Burr Head) (mm/in) | 22, 7/8" |
| Free Speed (min-1) | 18,000 |
| Power (W/ hp) | 340, 0.46 |
| Overall Length (mm/in) | 180, 7 3/32" |
| Weight (kg/lb) | 0.8, 1.8 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.43, 15.2 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Rear Exhaust Type | FG-26HX-1F |
| Collet Size (mm/in) | 6, 1/4" |
| Maximum Diameter (Mounted Wheel) (mm/in) | 25, 1" |
| Maximum Diameter (Burr Head) (mm/in) | 13, 1/2" |
| Free Speed (min-1) | 24,000 |
| Power (W/ hp) | 250, 0.34 |
| Overall Length (mm/in) | 188, 7 13/32" |
| Weight (kg/lb) | 0.5, 1.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.5, 17.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Rear Exhaust Type | FG-50HX-1F |
| Collet Size (mm/in) | 6, 1/4" |
| Maximum Diameter (Mounted Wheel) (mm/in) | 32, 1 1/4" |
| Maximum Diameter (Burr Head) (mm/in) | 22, 7/8" |
| Free Speed (min-1) | 18,000 |
| Power (W/ hp) | 340, 0.46 |
| Overall Length (mm/in) | 214, 8 27/64" |
| Weight (kg/lb) | 0.8, 1.8 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.43, 15.2 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-50-25 |
| Collet Size (mm/in) | 6, 1/4" |
| Maximum Diameter (Mounted Wheel) (mm/in) | 25, 1" |
| Maximum Diameter (Burr Head) (mm/in) | 13, 1/2" |
| Free Speed (min-1) | 20,000 |
| Power (W/ hp) | 250, 0.34 |
| Overall Length (mm/in) | 152, 5 63/64" |
| Weight (kg/lb) | 0.5, 1.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.5, 17.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-50-25 |
| Collet Size (mm/in) | 6, 1/4" |
| Maximum Diameter (Mounted Wheel) (mm/in) | 25, 1" |
| Maximum Diameter (Burr Head) (mm/in) | 13, 1/2" |
| Free Speed (min-1) | 18,000 |
| Power (W/ hp) | 250, 0.34 |
| Overall Length (mm/in) | 152, 5 63/64" |
| Weight (kg/lb) | 0.5, 1.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.5, 17.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
