Category >> FUJI RATCHET WRENCHES FRW-6NX-3
รหัส : FRW-6NX-3รุ่น : FRW-6NX-3

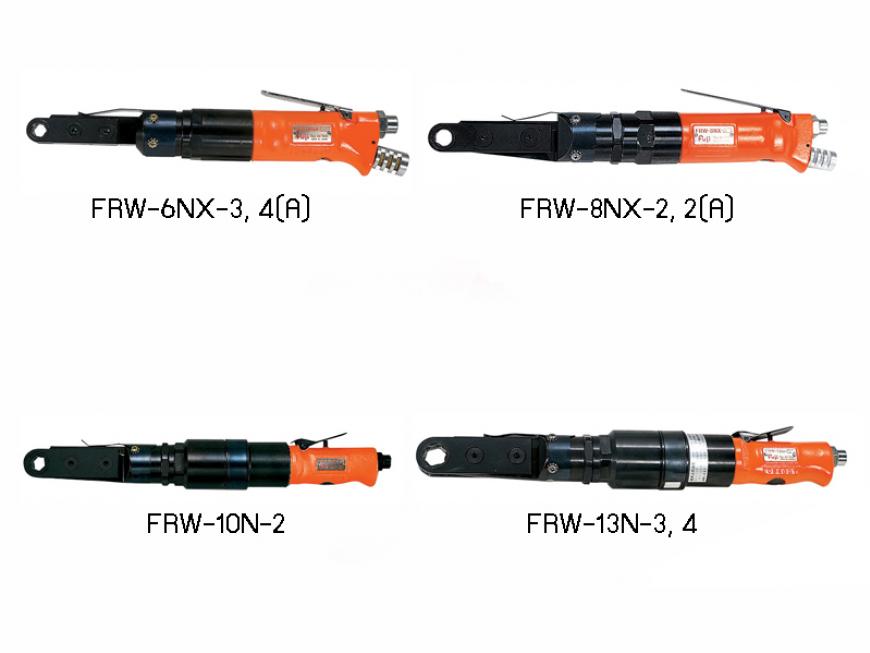

FUJI RATCHET WRENCHES
| Model | FRW-6NX-3 |
| Bolt Size (mm) | M6 |
| Maximum Torque (N.m/ kgf.m/ ft.lb) | 10.8, 1.1, 8.1 |
| Free Speed (min-1) | 200 |
| Hexagon Socket Size (mm) | 10 |
| Head Size Thickness (mm/in) | 13, 33/64" |
| Head Size Width (mm/in) | 20, 25/32" |
| Head Size Length (mm/in) | 88, 3 15/32" |
| Overall Length (mm/in) | 316, 12 7/16" |
| Weight (kg/lb) | 1.2, 2.6 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.25, 8.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FRW-6NX-3A |
| Bolt Size (mm) | M6 |
| Maximum Torque (N.m/ kgf.m/ ft.lb) | 10.8, 1.1, 8.1 |
| Free Speed (min-1) | 200 |
| Hexagon Socket Size (mm) | 10 |
| Head Size Thickness (mm/in) | 10, 25/64" |
| Head Size Width (mm/in) | 20, 25/32" |
| Head Size Length (mm/in) | 88, 3 15/32" |
| Overall Length (mm/in) | 316, 12 7/16" |
| Weight (kg/lb) | 1.2, 2.6 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.25, 8.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FRW-6NX-4 |
| Bolt Size (mm) | M6 |
| Maximum Torque (N.m/ kgf.m/ ft.lb) | 12.7, 1.3, 9.4 |
| Free Speed (min-1) | 170 |
| Hexagon Socket Size (mm) | 13 |
| Head Size Thickness (mm/in) | 13, 33/64" |
| Head Size Width (mm/in) | 24, 61/64" |
| Head Size Length (mm/in) | 93, 3 21/32" |
| Overall Length (mm/in) | 320, 12 9/16" |
| Weight (kg/lb) | 1.2, 2.6 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.25, 8.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FRW-6NX-4A |
| Bolt Size (mm) | M6 |
| Maximum Torque (N.m/ kgf.m/ ft.lb) | 12.7, 1.3, 9.4 |
| Free Speed (min-1) | 170 |
| Hexagon Socket Size (mm) | 13 |
| Head Size Thickness (mm/in) | 10, 25/64" |
| Head Size Width (mm/in) | 24, 61/64" |
| Head Size Length (mm/in) | 93, 3 21/32" |
| Overall Length (mm/in) | 320, 12 9/16" |
| Weight (kg/lb) | 1.2, 2.6 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.25, 8.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FRW-8NX-2 |
| Bolt Size (mm) | M8 |
| Maximum Torque (N.m/ kgf.m/ ft.lb) | 29.4, 3.0, 22.1 |
| Free Speed (min-1) | 200 |
| Hexagon Socket Size (mm) | 14 |
| Head Size Thickness (mm/in) | 18, 45/64" |
| Head Size Width (mm/in) | 25, 63/64" |
| Head Size Length (mm/in) | 108, 4 1/4" |
| Overall Length (mm/in) | 378, 14 57/64" |
| Weight (kg/lb) | 2.2, 4.9 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.43, 15.2 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FRW-8NX-2A |
| Bolt Size (mm) | M8 |
| Maximum Torque (N.m/ kgf.m/ ft.lb) | 29.4, 3.0, 22.1 |
| Free Speed (min-1) | 200 |
| Hexagon Socket Size (mm) | 14 |
| Head Size Thickness (mm/in) | 10, 25/64" |
| Head Size Width (mm/in) | 25, 63/64" |
| Head Size Length (mm/in) | 108, 4 1/4" |
| Overall Length (mm/in) | 378, 14 57/64" |
| Weight (kg/lb) | 2.1, 4.6 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.43, 15.2 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FRW-10N-2 |
| Bolt Size (mm) | M10 |
| Maximum Torque (N.m/ kgf.m/ ft.lb) | 44.1, 4.5, 33.1 |
| Free Speed (min-1) | 140 |
| Hexagon Socket Size (mm) | 17 |
| Head Size Thickness (mm/in) | 18, 45/64" |
| Head Size Width (mm/in) | 33, 1 19/64" |
| Head Size Length (mm/in) | 115, 4 17/32" |
| Overall Length (mm/in) | 417, 16 31/32" |
| Weight (kg/lb) | 2.7, 6.0 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.58, 20.5 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FRW-13N-3 |
| Bolt Size (mm) | M12 |
| Maximum Torque (N.m/ kgf.m/ ft.lb) | 58.8, 6.0, 44.1 |
| Free Speed (min-1) | 130 |
| Hexagon Socket Size (mm) | 21 |
| Head Size Thickness (mm/in) | 18, 45/64" |
| Head Size Width (mm/in) | 36, 1 27/64" |
| Head Size Length (mm/in) | 116, 4 9/16" |
| Overall Length (mm/in) | 419, 16 1/2" |
| Weight (kg/lb) | 2.7, 6.0 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.58, 20.5 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FRW-13N-4 |
| Bolt Size (mm) | M12 |
| Maximum Torque (N.m/ kgf.m/ ft.lb) | 78.4, 8.0, 58.8 |
| Free Speed (min-1) | 100 |
| Hexagon Socket Size (mm) | 24 |
| Head Size Thickness (mm/in) | 18, 45/64" |
| Head Size Width (mm/in) | 46, 1 13/64" |
| Head Size Length (mm/in) | 129, 4 5/64" |
| Overall Length (mm/in) | 431, 16 31/32" |
| Weight (kg/lb) | 3.0, 6.6 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.58, 20.5 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
» NX Models have silencer.
» Specify the socket size when ordering the tool.
» NX Models have silencer.
» Specify the socket size when ordering the tool.
