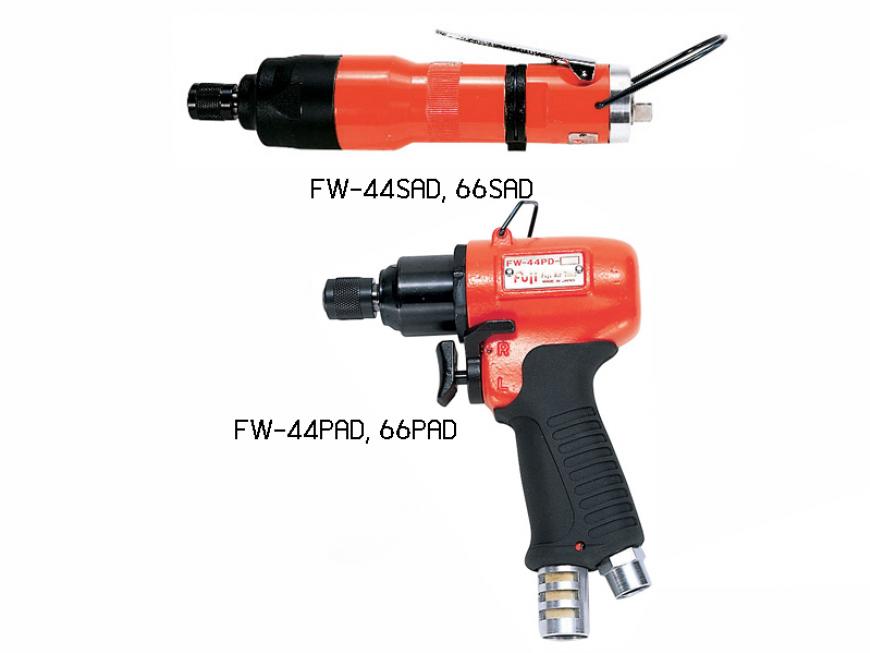

Category >> FUJI SCREWDRIVERS FW-44SAD
รหัส : FW-44SADรุ่น : FW-44SAD
FUJI SCREWDRIVERS
IMPACT CLUTCH TYPE
Hex. 6.35 mm (1/4")
| Model Straight Models | •FW-44SAD-1 |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~13, 0.6~1.3, 4.4~9.6 |
| Maximum Torque (N.m) | 20 |
| Free Speed (min-1) | 5,700 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 207,8 5/32" |
| Weight (Without Socket) (kg/lb) | 0.66, 1.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.35, 12.4 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Straight Models | •FW-44SAD-10 |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~13, 0.6~1.3, 4.4~9.6 |
| Maximum Torque (N.m) | 20 |
| Free Speed (min-1) | 5,700 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 207,8 5/32" |
| Weight (Without Socket) (kg/lb) | 0.66, 1.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.35, 12.4 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Straight Models | •FW-66SAD-1 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 11~20, 1.1~2.0, 8.1~14.8 |
| Maximum Torque (N.m) | 28 |
| Free Speed (min-1) | 5,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 218, 8 19/32" |
| Weight (Without Socket) (kg/lb) | 0.78, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.37, 13.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Straight Models | •FW-66SAD-10 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 11~20, 1.1~2.0, 8.1~14.8 |
| Maximum Torque (N.m) | 28 |
| Free Speed (min-1) | 5,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 218, 8 19/32" |
| Weight (Without Socket) (kg/lb) | 0.78, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.37, 13.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Pistol Grip Models | •FW-44PAD-2 |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~13, 0.6~1.3, 4.4~9.6 |
| Maximum Torque (N.m) | 20 |
| Free Speed (min-1) | 6,500 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 132, 5 3/16" |
| Weight (Without Socket) (kg/lb) | 0.78, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.60, 21.2 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Pistol Grip Models | •FW-44PAD-20 |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~13, 0.6~1.3, 4.4~9.6 |
| Maximum Torque (N.m) | 20 |
| Free Speed (min-1) | 6,500 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 132, 5 3/16" |
| Weight (Without Socket) (kg/lb) | 0.78, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.60, 21.2 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Pistol Grip Models | •FW-66PAD-2 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 11~20, 1.1~2.0, 8.1~14.8 |
| Maximum Torque (N.m) | 28 |
| Free Speed (min-1) | 5,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 143, 5 5/8" |
| Weight (Without Socket) (kg/lb) | 0.88, 1.9 |
| Air Consumption (At Load) (m3/min, ft3/min) | 048, 16.9 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Pistol Grip Models | •FW-66PAD-20 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 11~20, 1.1~2.0, 8.1~14.8 |
| Maximum Torque (N.m) | 28 |
| Free Speed (min-1) | 5,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 143, 5 5/8" |
| Weight (Without Socket) (kg/lb) | 0.88, 1.9 |
| Air Consumption (At Load) (m3/min, ft3/min) | 048, 16.9 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
» Air Inlet Thread Size - PT or NPT 1/4".
» Marked • are Oil Bath Types.
» Marked • are Oil Bath Types.
