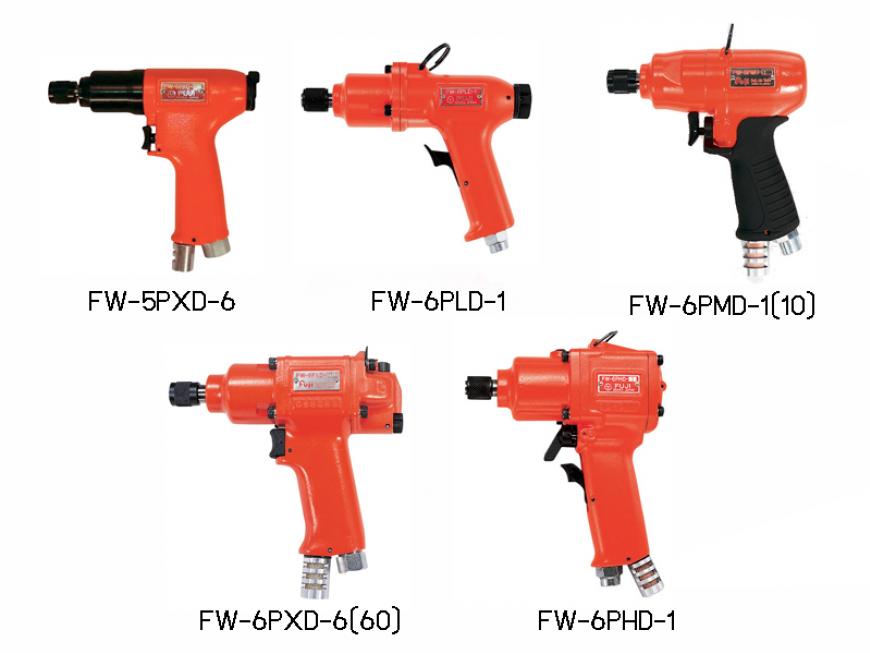

Category >> FUJI SCREWDRIVERS FW-5PXD-6
รหัส : FW-5PXD-6รุ่น : FW-5PXD-6
FUJI SCREWDRIVERS
PISTOL GRIP MODELS
Hex. 6.35 mm (1/4")
| Model | FW-5PXD-6 |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~11, 0.6~1.1, 4.4~8.1 |
| Maximum Torque (N.m) | 20 |
| Free Speed (min-1) | 12,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 160, 6 19/64" |
| Weight (Without Socket) (kg/lb) | 0.8, 1.8 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.30, 10.6 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FW-5PXD-60 |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~11, 0.6~1.1, 4.4~8.1 |
| Maximum Torque (N.m) | 20 |
| Free Speed (min-1) | 12,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 160, 6 19/64" |
| Weight (Without Socket) (kg/lb) | 0.8, 1.8 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.30, 10.6 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FW-6PMD-1 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 11~22, 1.1~2.2, 8.1~16.2 |
| Maximum Torque (N.m) | 34 |
| Free Speed (min-1) | 12,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 160, 6 19/64" |
| Weight (Without Socket) (kg/lb) | 0.8, 1.8 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.30, 10.6 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FW-6PMD-10 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 11~22, 1.1~2.2, 8.1~16.2 |
| Maximum Torque (N.m) | 34 |
| Free Speed (min-1) | 8,500 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 146, 5 3/4" |
| Weight (Without Socket) (kg/lb) | 0.92, 2.0 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.53, 18.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FW-6PLD-1 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 11~22, 1.1~2.2, 8.1~16.2 |
| Maximum Torque (N.m) | 34 |
| Free Speed (min-1) | 10,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 182, 7 11/64" |
| Weight (Without Socket) (kg/lb) | 0.92, 2.0 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FW-6PXD-6 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 10~18, 1.0~1.8, 7.4~13.3 |
| Maximum Torque (N.m) | 25 |
| Free Speed (min-1) | 10,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 168, 6 5/8" |
| Weight (Without Socket) (kg/lb) | 1.20, 2.6 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.28, 9.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FW-6PXD-60 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 10~18, 1.0~1.8, 7.4~13.3 |
| Maximum Torque (N.m) | 25 |
| Free Speed (min-1) | 10,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 168, 6 5/8" |
| Weight (Without Socket) (kg/lb) | 1.20, 2.6 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.28, 9.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FW-6PHD-1 |
| Bolt Size (mm) | M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 19~40, 1.9~4.1, 14.0~29.5 |
| Maximum Torque (N.m) | 60 |
| Free Speed (min-1) | 9,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 154, 6 1/6" |
| Weight (Without Socket) (kg/lb) | 1.35, 3.0 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.35, 12.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
