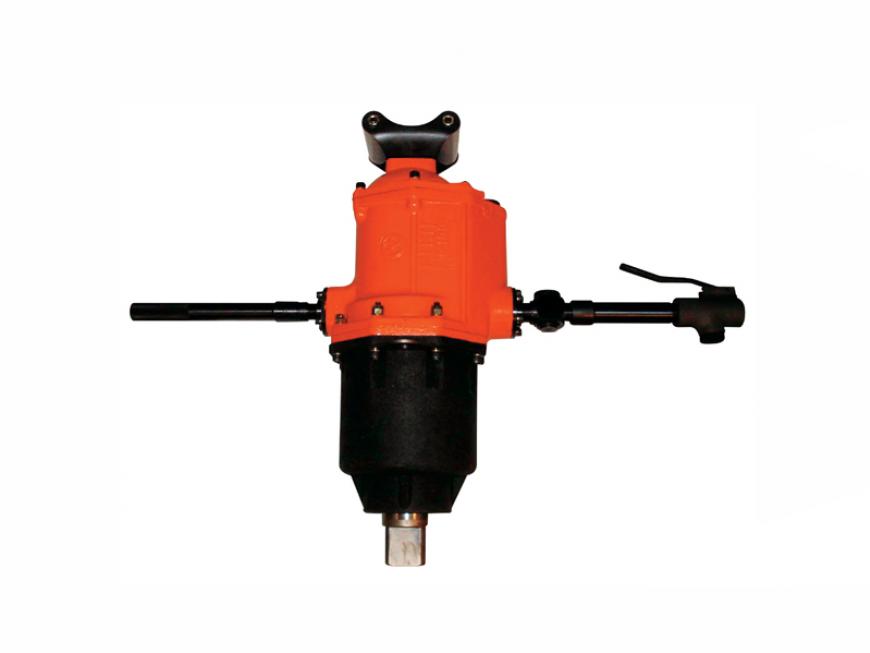

Category >> FUJI IMPACT WRENCHES FW-100-1
รหัส : FW-100-1รุ่น : FW-100-1
FUJI IMPACT WRENCHES
HIGH TORQUE SUPER HEAVY-DUTY MODELS
Sq. 38.1 mm (1 1/2") ~ 63.5 mm (2 1/2")
| Model | •FW-50-7 |
| Bolt Size (mm) | M50 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 3,300~7,050 , 333.6~719.1 , 2,433.8~5,199.4 |
| Maximum Torque (N.m) | 8,400 |
| Free Speed (min-1) | 4,000 |
| Square Drive Size (mm/in) | 38.1, 1 1/2" |
| Overall Length (Without Socket) (mm/in) | 500, 19 11/16" |
| Weight (Without Socket) (kg/lb) | 33.0, 72.6 |
| Air Consumption (At Load) (m3/min, ft3/min) | 1.9, 67.3 |
| Air Hose Size (mm/in) | 19.0, 3/4" |
| Model | •FW-75-7 |
| Bolt Size (mm) | M68 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 5,100~12,400 , 520.2~1,264.8 , 3,761.3~9,145.0 |
| Maximum Torque (N.m) | 14,000 |
| Free Speed (min-1) | 3,000 |
| Square Drive Size (mm/in) | 63.5, 2 1/2" |
| Overall Length (Without Socket) (mm/in) | 610, 24 1/64" |
| Weight (Without Socket) (kg/lb) | 60.0, 132.0 |
| Air Consumption (At Load) (m3/min, ft3/min) | 2.1, 74.6 |
| Air Hose Size (mm/in) | 19.0, 3/4" |
| Model | •FW-100-1 |
| Bolt Size (mm) | M76 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 9,250~20,800 , 943.5~2,121.6 , 6,821.9~15,340.0 |
| Maximum Torque (N.m) | 22,000 |
| Free Speed (min-1) | 2,500 |
| Square Drive Size (mm/in) | 63.5, 2 1/2" |
| Overall Length (Without Socket) (mm/in) | 700, 27 9/16" |
| Weight (Without Socket) (kg/lb) | 85.0, 188.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 3.2, 114.1 |
| Air Hose Size (mm/in) | 25.4, 1" |
» Air Inlet Thread Size - PT or NPT 1".
» All Models are Double Clutch Types.
» Marked • are Long Anvil Types.
» All Models are Double Clutch Types.
» Marked • are Long Anvil Types.
