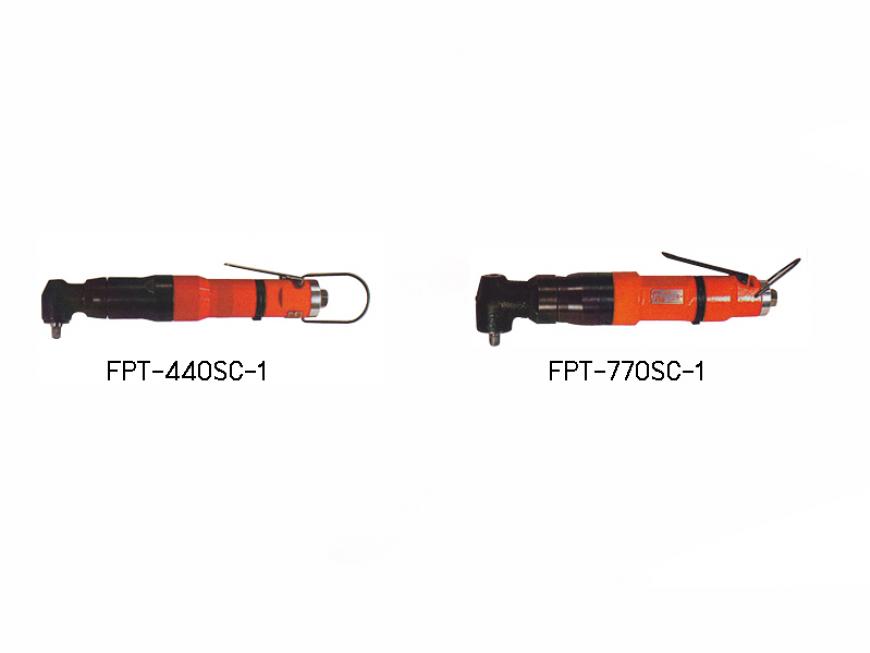

Category >> FUJI PULSE WRENCHES SHUT-OFF TYPE FPT-440SC-1
รหัส : FPT-440SC-1รุ่น : FPT-440SC-1
FUJI PULSE WRENCHES SHUT-OFF TYPE
ANGLE HEAD SQUARE DRIVE TYPE
Sq. 9.5 mm (3/8")
| Model | FPT-440SC-1 |
| Bolt Size (mm) | M5~M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~11, 0.6~1.1, 4.4~8.1 |
| Free Speed (min-1) | 4,500 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 280, 11 1/32" |
| Weight (Without Socket) (kg/lb) | 1.46, 3.2 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.35, 12.4 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FPT-550SC-1 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 10~17, 1.0~1.7, 7.4~12.5 |
| Free Speed (min-1) | 4,800 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 280, 11 1/32" |
| Weight (Without Socket) (kg/lb) | 1.46, 3.2 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.35, 12.4 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FPT660-0SC-1 |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 15~25, 1.5~2.6, 11.1~18.4 |
| Free Speed (min-1) | 4,700 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 292, 11 1/2" |
| Weight (Without Socket) (kg/lb) | 1.54, 3.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.5, 17.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FPT-770SC-1 |
| Bolt Size (mm) | M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 20~35, 2.0~3.6, 14.8~25.8 |
| Free Speed (min-1) | 5,500 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 306, 12 3/64" |
| Weight (Without Socket) (kg/lb) | 2.3, 5.1 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.45, 15.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
