Category >> FUJI PULSE WRENCHES SHUT-OFF TYPE FLT-4SD-1
รหัส : FLT-4SD-1รุ่น : FLT-4SD-1

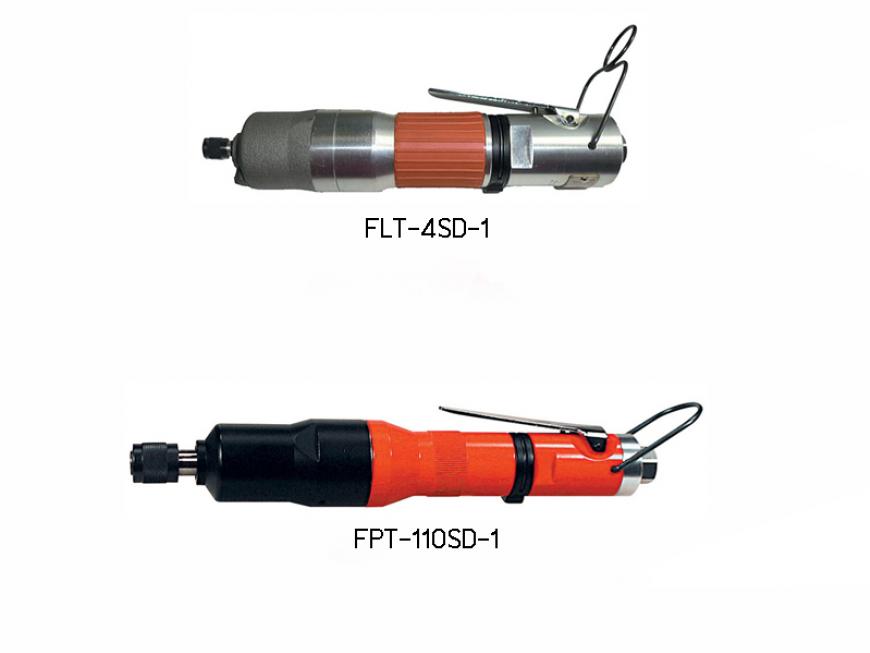

FUJI PULSE WRENCHES SHUT-OFF TYPE
STRAIGHT MODELS BIT SHANK
Hex. 6.35 mm (1/4")
| Model | FLT-4SD-1(10) |
| Bolt Size (mm) | M5~M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 5.5~11, 0.5~1.1, 3.8~8.4 |
| Free Speed (min-1) | 4,300 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 222, 8 47/64" |
| Weight (Without Socket) (kg/lb) | 0.88, 1.94 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.33, 11.6 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-5SD-1(10) |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 11~20, 1.1~2.0, 8.3~15.2 |
| Free Speed (min-1) | 6,400 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 222, 8 47/64" |
| Weight (Without Socket) (kg/lb) | 0.88, 1.94 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.36, 12.7 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-5SD-1(10)L* |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 10~18, 1.0~1.8, 7.6~13.7 |
| Free Speed (min-1) | 5,300 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 222, 8 47/64" |
| Weight (Without Socket) (kg/lb) | 0.88, 1.94 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.22, 7.7 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-6SD-1(10) |
| Bolt Size (mm) | M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 21~30, 2.1~3.0, 22.8~13.7 |
| Free Speed (min-1) | 5,800 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 234, 9 7/32" |
| Weight (Without Socket) (kg/lb) | 0.94, 2.07 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.42, 14.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-6SD-1(10)L* |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 19~27, 1.9~2.7, 14.4~20 |
| Free Speed (min-1) | 5,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 234, 9 7/32" |
| Weight (Without Socket) (kg/lb) | 0.94, 2.07 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.28, 9.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
» Air Pressure: L* Models: 0.4-0.5 MPa (4.0-5.0 bar); All Other Models: 0.5-0.63 MPa (5.0 to 6.3 bar).
» Air Pressure: L* Models: 0.4-0.5 MPa (4.0-5.0 bar); All Other Models: 0.5-0.63 MPa (5.0 to 6.3 bar).
Sq. 6.35 mm (1/4")
| Model | FPT-110SD-1(10) |
| Bolt Size (mm) | M4~M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 4~7, 0.4~0.7, 3.0~5.2 |
| Free Speed (min-1) | 4,500 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 240, 9 29/64" |
| Weight (Without Socket) (kg/lb) | 0.85, 1.9 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FPT-330SD-1(10) |
| Bolt Size (mm) | M5~M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~10, 0.6~1.0, 4.4~7.4 |
| Free Speed (min-1) | 4,400 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 249, 9 13/16" |
| Weight (Without Socket) (kg/lb) | 1.1, 2.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.35, 12.3 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
» Air Inlet Thread Size - PT or NPT 1/4".
» Air Pressure: FPT-110 Series: 0.4-0.63 MPa (4.0-6.3 bar); All Other Models: 0.5-0.63 MPa (5.0 to 6.3 bar).
» Performance figures are at 0.63 MPa (6.3 bar) air pressure.
» Air Pressure: FPT-110 Series: 0.4-0.63 MPa (4.0-6.3 bar); All Other Models: 0.5-0.63 MPa (5.0 to 6.3 bar).
» Performance figures are at 0.63 MPa (6.3 bar) air pressure.
